Low or Full Energy Automatic Swing Door Opener
Improve Your Customers' Experience
Our NEW Power Assist technology for Low Energy doors eliminates motor resistance when opened manually, so even heavy panels are effortless to open and safer to use.
Adapts to Any Environment
The NEW iQ Controller can be custom tuned by a certified technician to compensate for wind or stack pressure so doors open and close smoothly and safely.
Fulfilling Your Specification Needs
Compliance
Compliance with all U.S. and Canada accessibility laws
Low Energy
Low Energy (knowing act activated) ANSI/BHMA A156.19
Full Energy
Full Energy (full energy motion for quicker passage) ANSI/BHMA A156.10
Medium to High Foot Traffic
A cost effective way to direct traffic flow.
High Weight Capacity
Door panel weight up to 700 lbs (350 lbs more than original Magic-Force) for applications such as tall retail or high-rise doors, grocery freezer doors, and hospital lead lined X-Ray doors or STC-rated acoustic doors.
UL Equipment
Fire door package with UL listed equipment.
Mounting Options Available
Surface mount, overhead concealed (center pivot), and in ground systems available.
Speak with an Expert
Other Swinging Door Openers
STANLEY M-Force™ Automatic Swing Door Opener
The Next Generation Magic-Force™ redesigned for a versatile solution that’s built to last.
M-Force
Low Energy Features
- Power Assist with Slam Protection
- Power Close to compensate for wind and stack pressure
- Magic-Touch™: A manual push triggers fully automatic open and close
- Safety Presence Sensors Available
Full Energy Features
- Power Close to compensate for wind and stack pressure
- Coordinated Closing for dual panel applications to ensure a proper close and lock or latch
- Activation and presence door-mounted sensors
All Applications
- Integration with Access Control, Electric Locks, Fire Alarms and more
- Lock Release, so locks don’t jam under wind and stack pressure conditions
- Sequencing for vestibules
- Integrates with third party accessories requiring 24 volts
- Custom finishes
- Surface mount, overhead concealed (center pivot), and in ground systems available
- Door panel weight up to 700 lbs (350 lbs more than original Magic-Force) for applications such as tall retail or high-rise doors, grocery freezer doors, and hospital lead lined X-Ray doors or STC-rated acoustic doors
- Fire door package with UL listed equipment
Surface Mount
Semi-concealed or Concealed
Bottom load or In-ground
In-swing or Out-swing
Right hand or Left hand
| Header Size | 6.0” (152mm) High x 5.5” (140mm) Deep |
| Swing Door Panels | Up to 48” (1220mm) |
| Door Panel Weight | 700lbs (318kg) |
| Drive System | 3/16HP DC Motor, Gear Drive |
| Controller |
High Resolution iQ Controller, Microprocessor Based, Safety Logic, Fire Alarm Interface, On Board Lock Delay and Power (1 A), Power Close, Force Compensation, Slam Protection.) |
| Safety Options |
Swing-Guard Sensor (Full Energy), Rails (Full Energy), Swing Guard LE Sensor (Low Energy) |
| Activation Sensor Options |
2 Combined Activation/Safety Sensors + Holding Doorway Holding Beams for added safety OPTIONS: Mats, Wall Plates, Wireless Activation systems |
| Breakout | Automatic Reset (center hung) |
| Power Required | 120 VAC, 5 amps min., 50/60 HZ |
| Codes and Standards |
UL, cUL, ANSI/BHMA A156.10, ANSI/BHMA A156.19, IBC, NFPA 101, CSFM See Asset Library for specific documents. |
* All Specifications are subject to change. Please contact your local sales representative to ensure accuracy.
sensors required
up to 700 lbs
up to 48"
Pivoted or Hinged Swing Doors

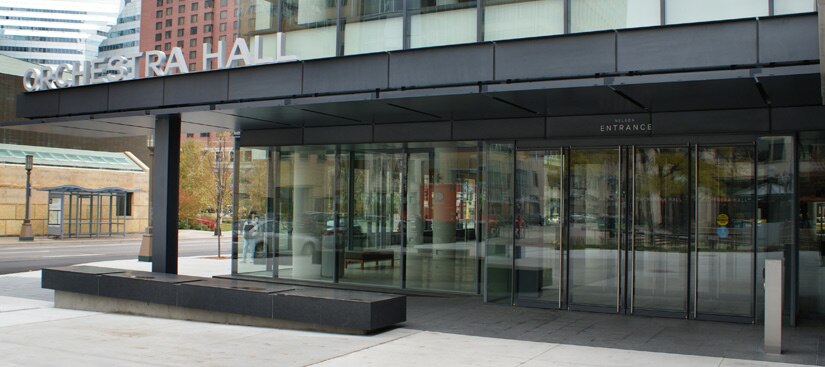

Why Pivot Doors?
Pivot doors are an excellent selection for applications that require a large opening with minimal floor space interruption. Pins are located at the top and bottom of the frame, allowing the door to pivot. Each door’s pivot point is custom located by request; center and off center pivot locations are available (subject to engineering approval).
Style and Strength
Heavy duty hinged doors available based on custom architectural design.
Speak with an Expert
STANLEY Pivoted/Hinge
Tempered Glass Doors
Heavy Extruded Corner And Bearing Bracket
Snap On Covers With No Visible Screws
Overhead Concealed Door Closer
Full Perimeter Weather Sweeps

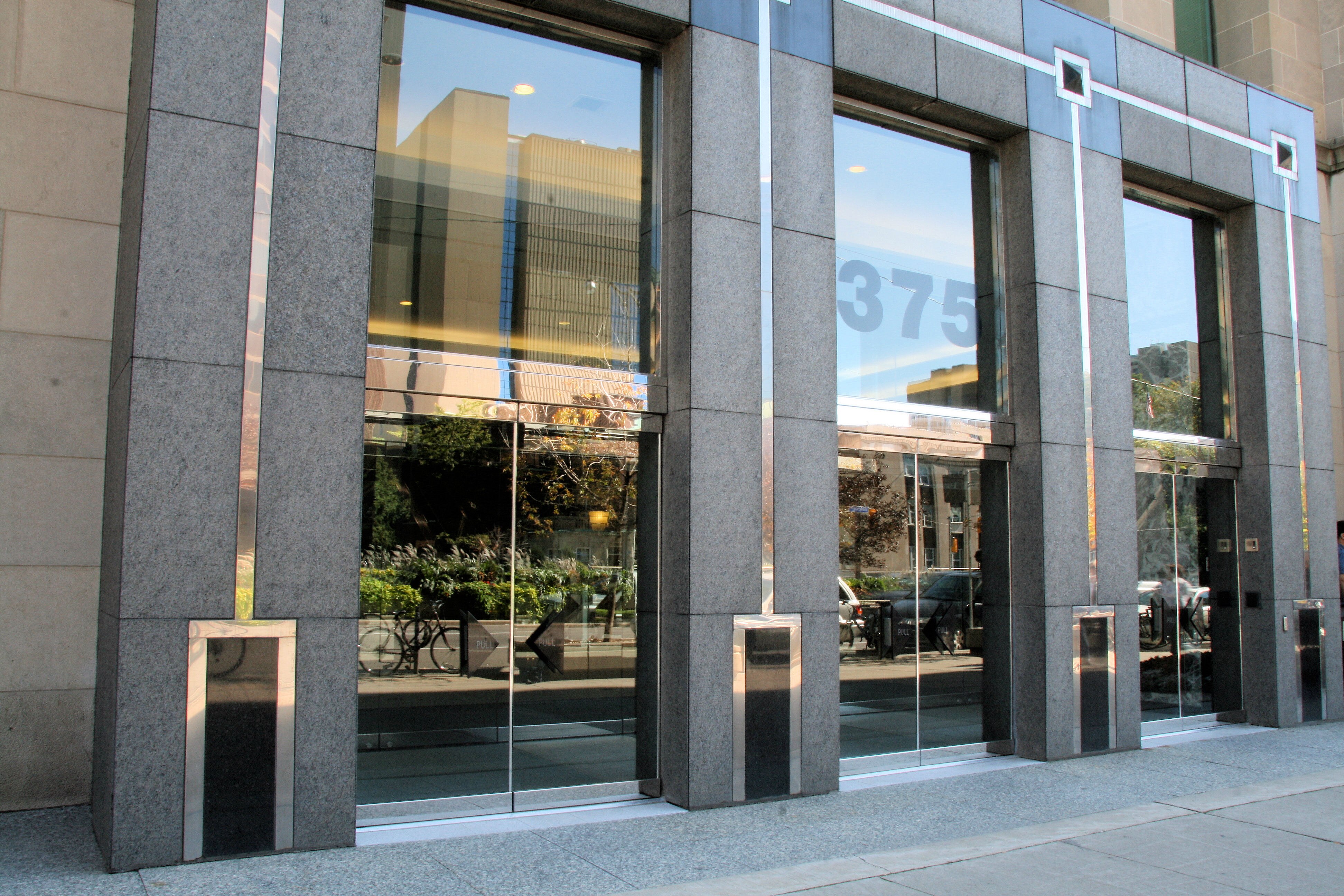

Center Pivot (Concealed)
Offset Pivot (Exposed)

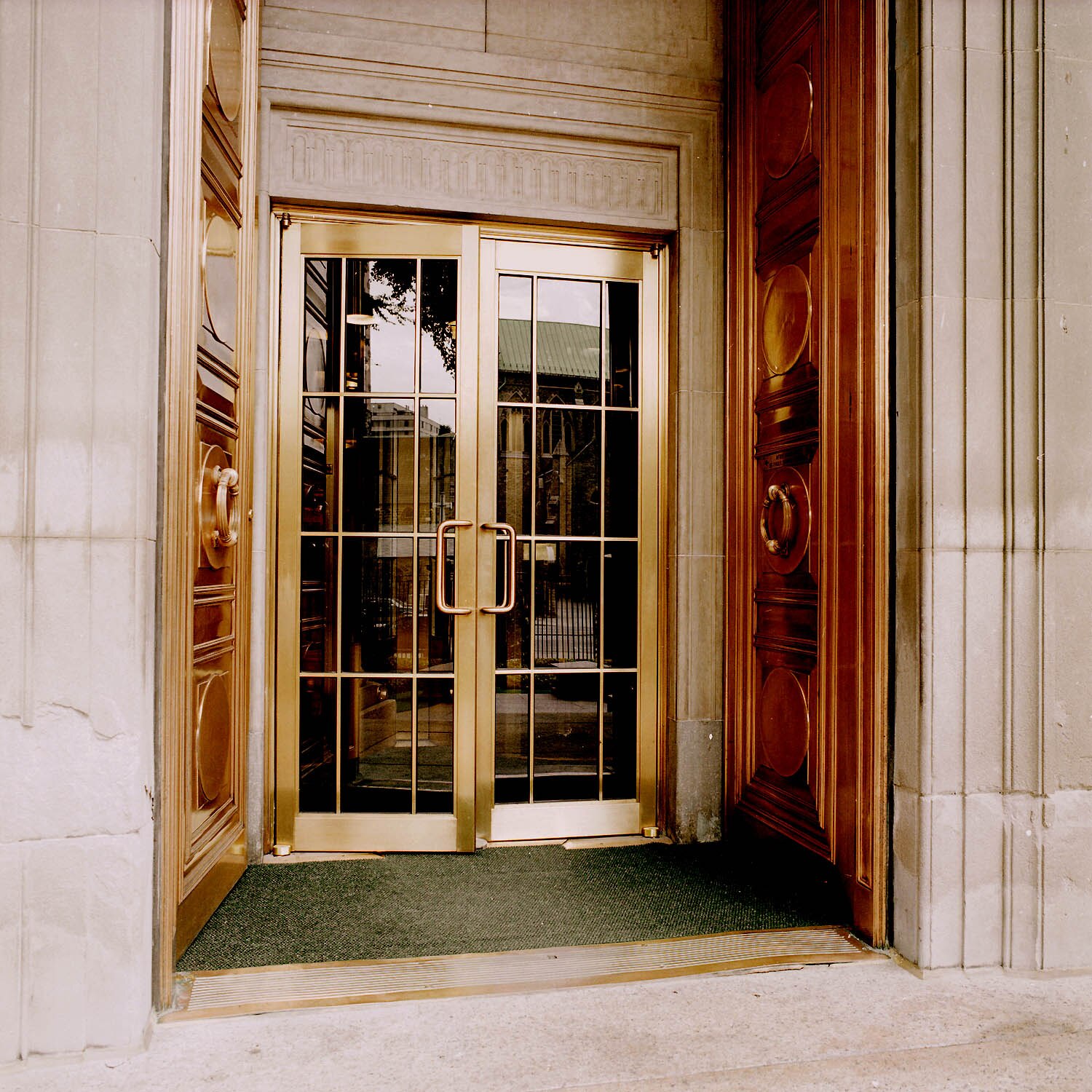

Hinged Doors
Locking
Access Control
Panic Exit Devices
Virtually Any Special Hardware Requirements Can Be Applied As Required
All Glass Design With Top And Bottom Rail Only
STANLEY Magic Force Automatic Operator
Series 10, 30, 40, 60
| Standard Door Dimensions | ||
|---|---|---|
| A - Door Opening |
* 3’ – 0” (914) |
* 3’ – 0” (914) |
| Width B – Clear Opening Width |
2’-8 3/8” (822) |
3’-2 3/8” (975) |
* Denotes standard size doors in 7’-0” (2134) height. All other sizes and heights are custom fabricated and finished to suit specific job requirements.
Low Energy Swing Door Opener / Knowing Act Only
Light Duty and Light Opening
- Add knowing act automation to manual swinging doors up to 42” in panel width and 125 pounds in panel weight. Retrofit or new construction.
- When used manually, is lighter to open than typical swing door.
Simple and Safe
- Compact header, width is customized to span the full width of the door opening, adding to a finished, aesthetically pleasing look.
- Designed with safety in mind, Magic-Access meets low-energy codes under ANSI 156.19.
Magic Access Benefits
This state-of-the-art door opener boasts a wealth of benefits, from customizability to keeping your entrances compliant with accessibility laws.
Compliance
Compliance with all U.S. and Canada accessibility laws
Hardware Options
Various hardware options and special finishes available.
Low Energy Features
Energy-efficient features, including a low energy consumption operator.
Built-In Features
Built-in Lock Delay to work with Strike
Built-in Power Close to compensate for wind and stack pressure
Speak with an Expert
Other Swinging Door Openers
Magic Access Low Energy/Knowing Act Swing Door Operator
Our cost effective medium-to-low duty option.
Magic Access
Obstruction detection
Special Finishes
Additional Safety Options
Magic-Touch™ activation for extra power assistance when used manually opening past 3°
Selectable Power Close
Adjustable Time Delay
Lock Delay
Sequencing for Vestibules
| Header Size | 6 1/8” (152mm) High x 4” (102) deep |
| Swing Door Panels | Up to 42” (1067mm) |
| Door Panel Weight | Up to 125 pounds (57kg) |
| Drive System | 1/8 HP DC Motor, Gear Drive, “Low-energy” |
| Controller |
Solid State, Electronic, with Built in “Reverse-on-obstruction” OPTION: Magic-Touch® Activation |
| Activation Sensor Options |
Mats, Motion Detectors, Radio Controls or Touch-less wave sensors |
| Breakout | Breakaway Door Stop Available |
| Power Required | 120 VAC, 5 Amps Minimum |
| Codes and Standards |
UL, cUL, ANSI A156.19, NFPA 101, CSFM See Asset Library for specific documents. |
* All Specifications are subject to change. Please contact your local sales representative to ensure accuracy.
up to 125 lbs
up to 42"
overhead only
