Dura-Storm 2000/3000
Trusted as your first line of defense from hurricanes by withstanding high wind pressure and resisting forced entry.
Designed to increase the structural resilience of essential facilities, the Dura-Storm Level E provides the utmost protection against windborne debris and hurricane-force wind loads when evacuation is not an option.
Product Details
Clear or Dark Bronze Anodized
Special Finishes
Alternate locking options
Medium 4" stiles
Narrow 2" stiles
Transoms on non-impact rated
Impact Rated Level E: Bi-Parting
- Medium Stiles
- Bi-part: 168” x 96”
- Glass: 5/8”
Impact Rated: Bi-Parting and Single Slide
- Narrow / Medium Stiles: +/- 75 PSF
- Bi-part: 168” x 96”
- Single Slide: 108” x 96”
- Glass: 9/16”
Impact Rated: Bi-Parting Only
- Medium Stiles - Steel Reinforced: +/- 55 PSF
- Bi-part: 192” x 104” / 179.5” x 128”
- Glass: 9/16"
Non Impact Rated: Bi-Parting and Single Slide with Transom Option
- Narrow / Medium Stiles: +/- 55 PSF
- Bi-part: 168” x 96” (w/o transom) or 123.75” (w/ transom)
- Single Slide with Optional Transom: 108” x 96” (w/o transom) or 123.75” (w/ transom)
- Glass: ¼”, 1”
All door packages are custom manufactured to fit your job requirements up to ¼” increments. For sizes greater or smaller than typical, contact your authorized STANLEY Access Technologies Sales Representative.
| Design | Single Slide or Bi-part |

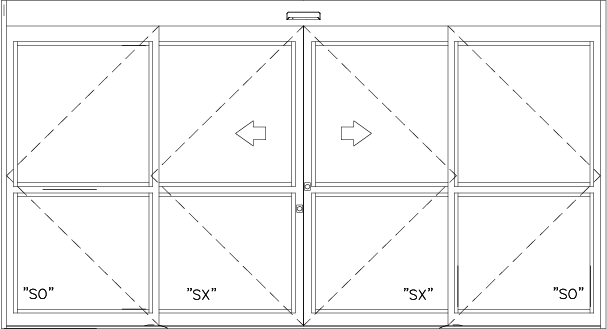

| Breakout | SX Panel on the 2000, SX and SO panels on the 3000 |
| Finish | Clear or Dark Bronze Anodized | OPTION: Special Finishes Available |
| Typical Height | 7’-8” (2.3m) |
| Clear Door Opening |
Bipart 70.6” | Single Slide: 46.4” |
| Header Size | 8” (203mm) High x 6” (152mm) Deep |
| Jamb Dimension | 1 3/4” x 4 1/2” Option: 1 3/4” x 6” |
| Stiles | Narrow 2.0” or Medium 4.0" |
| Bottom Rail | 4" | OPTION: 6", 8", 10", 12" |
| Typical Door Panel Weight | Up to 220 Pounds Each (100kg) |
| Maximum Panel Weight | Up to 400lb (With Heavy Duty Option) |
| Door Panel Material | Aluminum |
| Power Required | 120 VAC, 50/60 HZ, 5 Amps Minimum | OPTION: Uninterrupted Power Supply |
| Drive System | 1/4 HP DC Motor, Gear Drive, Toothed belt | OPTION: Twin 1/4 HP DC Gear Driven Motors |
| Controls | Rocker Switch | OPTION: Rotary, Keyed Rotary Controls, Eco Pro |
| Controller | High Resolution iQ Controller, Microprocessor Based, Safety Logic |
| Activation/Safety Sensors | 2 Combined Activation/Safety Sensors + Holding Doorway Holding Beams for added safety | OPTIONS: Mats, Wall Plates, Wireless Activation systems |
| Locking | 5-point, Electric Solenoid Lock (Fail Safe/Fail Secure), Surface or Recessed Panic Hardware, Lock Guard, Armored Strike |
| Security Options | Alarm Contacts for remote monitoring of panel status, Security Strobes for theft deterrence |
| Temperature Rating | -30F to 130F |
| Glass Stops | 1/4", 1" | 9/16" Impact Glass |
| Muntins | One 2" | OPTION: 4 1/4" |
| Threshold | Configurable Options |
| Transom | Optional on Non Impact package only |
| Codes & Standards | ANSI A156.10, NFPA 101, UL, cUL, ICBO, BOCA, Florida Building Code, Miami-Dade County NOA Code Compliance, ASTM E283, Level E |
* All Specifications are subject to change. Please contact your local sales representative to ensure accuracy.
Miami-Dade Listings now under Allegion Access Technologies
| Product | Type | FBC # | N.O.A. # | Expires | Impact | Pos (+) | Neg (-) | Reinf. | Size(WxH) | Glass | |
| Dura-Storm 2000/3000 | Bi-Parting/Single Slide |
41992.3 |
4/04/28 | YES | 75 | 75 | NO | 168" x 96"/108" x 96" | 9/16" | ||
| Dura-Storm 2000/3000 | Bi-Parting | 41992.2 | 23-1127.03 | 4/04/28 | YES | 55 | 55 | YES | 192” x 104”/179.5” x 128” | 9/16" | |
| Dura-Storm 2000/3000 | Bi-Parting/Single Slide w/ Transom Option |
41992.1 |
23-1127.02 | 4/11/28 | NO | 55 | 55 | NO | 168" x 96" x 123.75"/108" x 96" x 123.75" | 1/4”, 1” | |
| Dura-Storm 3000 Level E |
|
FBC# 18003.4 | 23-1127.01 | YES | 75 | 75 | NO | 168" x 96" | 5/8" |
